CPC OEM
EVACUATED TUBE COLLECTORS
ABOUT THE COLLECTOR:
- For water heating and supplementary heating
- Can be connected in series
- Stainless steel heat pipes
SCOPE OF SUPPLIES:
The CPC collectors are supplied as fully preassembled units comprising:
- Evacuated tubes based on the thermos flask principle
- Manifold with direct flow heat conduction unit and dry tube connection
- CPC reflectors
The CPC OEM collectors are packed individually in cardboard boxes. To provide better protection for the products and installation personnel, the collectors are supplied with a sun protection foil over the evacuated tubes.
INSTALLATION TYPES:
- Roof installation
- Flat roof installation
Note: The manifold must always be installed upwards. The minimum angle for roof and flat roof installation is 15°.
| SERIES | CPC 6 OEM | CPC 12 OEM | CPC 18 OEM | |
| Number of evacuated tubes | 6 | 12 | 18 | |
| Collector energy output class (50°C/75°C) (Solergy)1) | AA/AA | AA/AA | AA/AA | |
| Annual collector energy output (50 °C Würzburg) | kWh/ year | 665 | 1313 | 1961 |
| Energy output per collector module 2) | W | 607 | 1198 | 1789 |
| KEnergy output per collector module 3) | W | 644 | 1272 | 1899 |
| Product data in accordance with the EU Regulations 811/2013 and 812/2013 (ErP-relevant data) collector reference area (gross) | ||||
| Asol collector reference area | m2 | 1,16 | 2,29 | 3,42 |
| η0 zero-loss efficiency | 0,56 | 0,56 | 0,56 | |
| ηcol collector efficiency | % | 52 | 52 | 52 |
| a1 first-order heat transfer coefficient | W/(m2 K) | 0,65 | 0,65 | 0,65 |
| a2 second-order heat transfer coefficient | W/(m2 K2) | 0,004 | 0,004 | 0,004 |
| IAM incidence angle modifier | 0,99 | 0,99 | 0,99 | |
| more product details | ||||
| Gross area | m2 | 1,16 | 2,29 | 3,42 |
| Collector dimensions (length x width x height) | m | 1,64 x 0,71 x 0,10 | 1,64 x 1,40 x 0,10 | 1,64 x 2,09 x 0,10 |
| Collector contents | l | 0,87 | 1,73 | 2,60 |
| Weight of empty collector | kg | 17,4 | 32,7 | 48,0 |
| Max. admissible operating pressure | bar | 10 | 10 | 10 |
| Max. stagnation temperature | °C | 301 | 301 | 301 |
| Connection diameter, compression fitting | mm | 15 | 15 | 15 |
| Sensor sleeve | mm | 6 | 6 | 6 |
| Colour (aluminium frame section, anodized) | aluminum gray | |||
| Colour (plastic parts) | black | |||
| Conformity 4) | Pressure Equipment Directive 2014/68/EU | |||
| Impact resistance test in accordance with ISO 9806 | mm | 35 | ||
| Tests and approvals | ISO 9806, Solar Keymark | |||
| DIN-CERTCO registration number | 011-7S134R | |||
| Ordering no. | 08-4054 | 08-4055 | 08-4056 | |
1) Can be used only with own Solar Keymark certification, for details, refer to: www.solar-heating-initiative.com and www.dincertco.de/en/
2) At 1000 W/m² and 40 K temperature difference between the average collector temperature and ambient temperature.
3) BAt 1000 W/m² and 0 K temperature difference between the average collector temperature and ambient temperature.
4) Existing certification of collectors by TÜV SÜD Industrie Service GmbH for Ritter Solartechnik GmbH & Co.KG; valid in Germany. TÜV can be contacted for separate certification in accordance with the Pressure Equipment Directive when needed.
2) At 1000 W/m² and 40 K temperature difference between the average collector temperature and ambient temperature.
3) BAt 1000 W/m² and 0 K temperature difference between the average collector temperature and ambient temperature.
4) Existing certification of collectors by TÜV SÜD Industrie Service GmbH for Ritter Solartechnik GmbH & Co.KG; valid in Germany. TÜV can be contacted for separate certification in accordance with the Pressure Equipment Directive when needed.

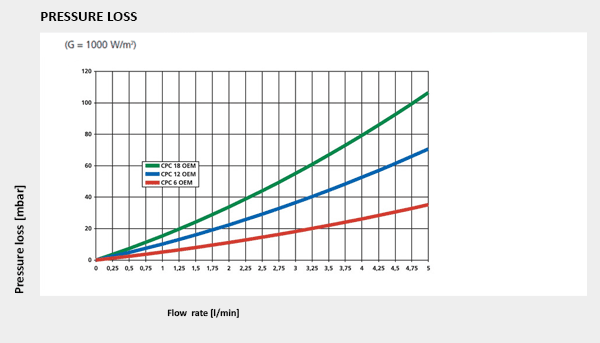

PRESSURE LOSS OF RITTER SOLARTECHNIK EVACUATED TUBE COLLECTORS CPC 6/12/18 OEM
heat transfer fluid: Tyfocor LS, fluid temperature 40°C

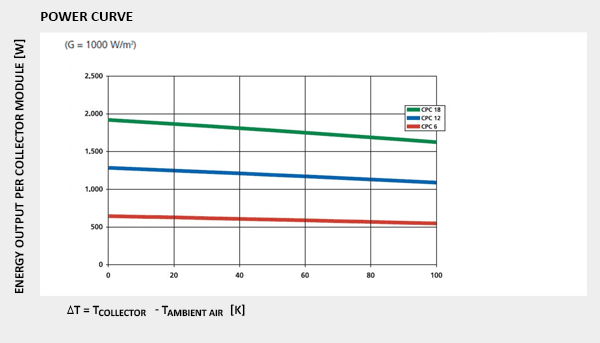

POWER CURVE OF RITTER SOLARTECHNIK EVACUATED TUBE COLLECTORS CPC 6/12/18 OEM
– (G = 1000 W/m²)
